Attachment
High Capacity Bucket Grapple

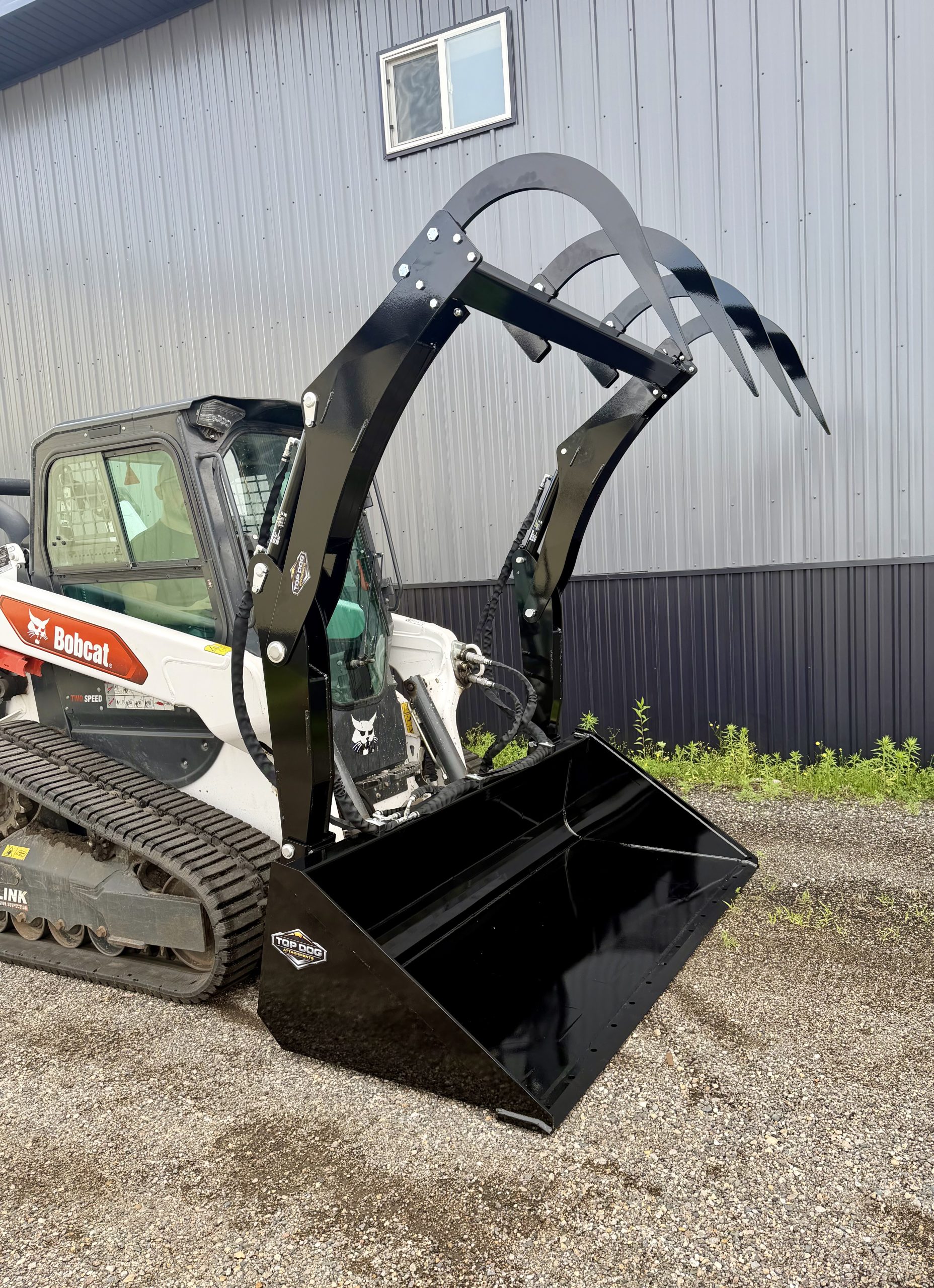

84″ High Capacity Bale Grapple With Dirt Bucket or Tines
Move more hay with fewer trips using the Top Dog Attachments High Capacity Bale Grapple. Built tough in the USA, this grapple is designed to handle large quantities of small square bales efficiently, helping farmers, ranchers, and hay producers save time during loading, unloading, and stacking operations.
Constructed from durable, high-strength steel, the High Capacity Bale Grapple is engineered to withstand the demands of daily farm use while providing reliable performance season after season. Its heavy-duty grapple arms securely clamp and hold bales during transport, reducing material loss and increasing productivity in the field and at the barn.
Whether you’re loading trailers, stacking hay in storage, or moving bales across your property, the High Capacity Bale Grapple makes hay handling faster, safer, and more efficient.
Features
- Made in the USA
- Heavy-duty steel construction
- Designed for handling multiple small square bales at once
- Secure grapple arms for reliable bale retention
- Increases efficiency and reduces labor
- Ideal for farms, ranches, and hay operations
- Built for long-lasting performance
Specifications
- Part #: 9033337
- Width: 84”
- Overall Height Closed: 55″
- Overall Height Open: 78″
- Overall Depth: 60″
- Grapple Opening: 73″
- Depth of Bucket: 40″
- Tines: 3/8″ – Grade 50
- Cutting Edge: 1/2″ x 10″ Grade 50
- Top Tubes: 3″x 4″x 1/4″
- Bottom Tubes: 3″x 4″x 1/4″
- Grapple Tines: 5/8″ T1 – Laser Cut
- Cylinders: 2″x 12″
- Hydraulic Couplers: Flat Face
- Hydraulic Hoses: 3/8″
- PSI Max: 3,000
- Pivot points: Greece Zerks
- Struck Capacity: 27.3 ft3
- Heaped Capacity: 32.7 ft3
- Weight: 1229 LBS
